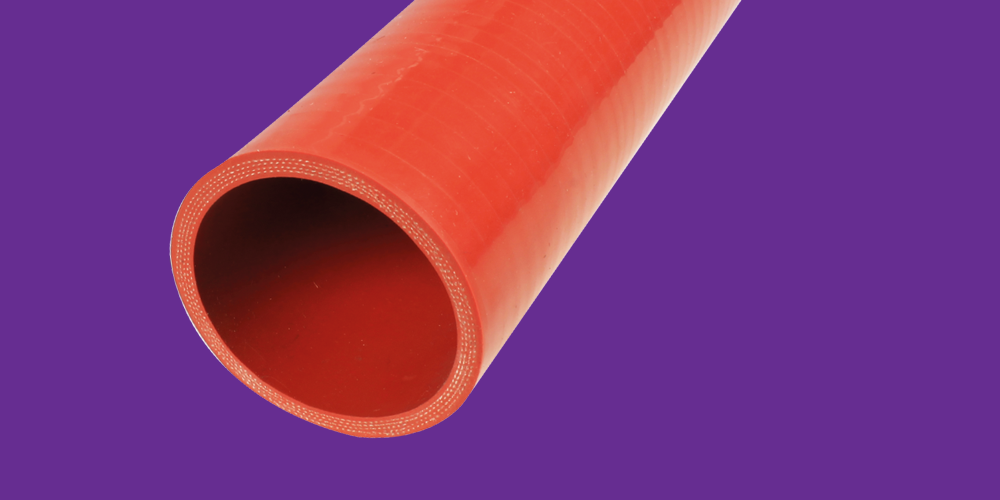

Leyland Hose and Silicone glass fabric reinforced silicone hoses offer the ultimate high temperature resistance. Hose are produced using fabric made using woven glass fabric that works at temperatures in excess of 350°C. Combined with our high temperature silicone compound, our hose can work continuously at 230°C and up to 300°C intermittently.

Silicone glass reinforced hoses are not recommended for where high flexibility and movement is required.

Straight 1 mtr lengths are available from stock.

Colour – Brick Red

Material Specification – Silicone Compound

Tested to BS903 at pressed cured for 5 minutes at 120°C.

Hardness (IHRD) 60 + 5
Density (g/cm³) 1.24 + 0.03
Tensile strength
Elongation at break (%) 200 min
Tear strength (KN/m) 12 min
Compression set (%) 18 Max

All hoses made to SAE J20006-R3 – For use up to 180°C
For higher temperature Meta Aramid fabric used up to 260°C

Benefits of Fibre Glass Reinforced Hose

  • Offer the ultimate high-temperature resistance

  • The inherent heat and flame resistance helps improve the safety, performance and durability

  • Tested to BS903 at pressed cured for 5 mins at 120ºC

  • Hoses perform over a much wider temperature range (-50ºC to +300ºC)
