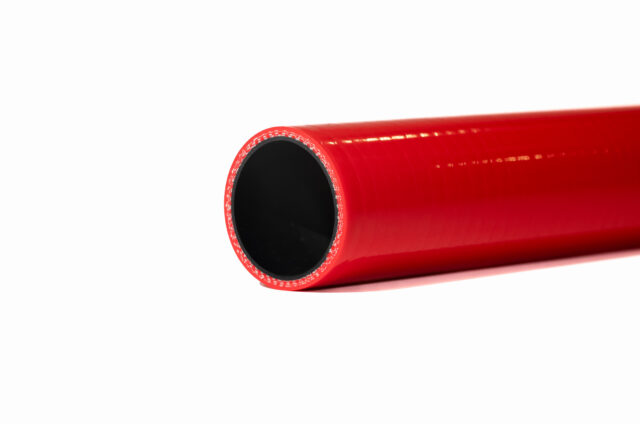

Fluorolined Carbon Hoses

Fluorolined carbon hoses are engineered for applications requiring exceptional resistance to fuel, oil, and aggressive chemicals, combined with high strength and durability under pressure.

Featuring a fluorosilicone (FVMQ) inner liner and carbon-infused outer construction, these hoses are designed to perform in the most demanding environments, where standard silicone hoses would fail.

  • Excellent fuel and oil resistance
  • High temperature and pressure performance
  • Carbon reinforcement for enhanced strength
  • Ideal for automotive, motorsport and industrial applications

Request a Quote

Fluorolined carbon hoses are specialist hoses that combine a fluorosilicone (FVMQ) inner lining with a reinforced silicone structure, often enhanced with carbon-based materials for added durability.

The fluorosilicone lining provides superior resistance to hydrocarbons, oils, and fuels, while the outer construction ensures strength, flexibility, and thermal stability.

This dual-layer design makes them ideal for applications where both chemical resistance and mechanical performance are critical.

All Hose Products Quick Quote

  • Known As

    • FKM hoses
    • Fluorocarbon lined hoses
    • Viton lined hoses
    • Fluoroelastomer hoses
    • Fuel cell hoses
    • Fuel resistant silicone hoses
    • Oil resistant silicone hoses
    • Fluorolined silicone hoses
    • Hydrocarbon resistant hoses
    • Low permeation hoses
    • Barrier lined hoses
    • Chemical resistant silicone hoses

  • Key Features and Benefits

    • Superior Fuel & Oil Resistance – Fluorosilicone lining resists hydrocarbons, making these hoses ideal for fuel systems, turbo applications, and oil transfer.

    • High Temperature Performance – Designed to operate in extreme environments, typically from -50°C to +200°C, depending on specification.

    • Enhanced Structural Strength – Carbon reinforcement improves hose stability under pressure and reduces the risk of deformation.

    • Reduced Permeation – Prevents fuel vapour loss and contamination, ensuring system efficiency and compliance.

    • Long Service Life – Engineered to withstand harsh operating conditions, reducing maintenance and downtime.

  • What OAT Hoses Are Used For

    Fluorolined carbon hoses are used across industries where fuel, oil, and chemical resistance are critical:

    • Automotive fuel and turbo systems
    • Motorsport and high-performance vehicles
    • Commercial vehicles and heavy-duty fleets
    • Marine fuel and oil systems
    • Industrial machinery and processing equipment
    • Fuel cell and advanced energy systems

  • Sizes, Lengths, Angles

    • Inner diameters (ID): From 6mm to 152mm
    • Straight: Available as standard in 1, 2, 3 and 4 metre lengths. Other lengths can be requested.
    • Elbows: 45°, 90°, 135°, 180° with leg lengths from 102mm to 250mm. Bespoke parts also available.
    • External colours: Full range of colours available upon request.

Why Fluorolined Hoses Are Required

Standard silicone (VMQ) hoses offer excellent temperature resistance but are not suitable for prolonged exposure to fuel or oil, as these substances can permeate and degrade the material over time.

Fluorolined hoses are specifically engineered to:

  • Prevent fuel and oil permeation
  • Maintain structural integrity in chemically aggressive environments
  • Withstand high temperatures and pressure cycles
  • Deliver long-term reliability in demanding systems

Carbon reinforcement further enhances performance by improving:

  • Strength under pressure
  • Resistance to expansion and deformation
  • Durability in high-stress environments

LHSS Fluorolined Carbon Hose Capability

At Leyland Hose & Silicone, our fluorolined carbon hoses are:

  • Manufactured using high-performance fluorosilicone (FVMQ) liners
  • Reinforced for maximum strength and durability
  • Designed for fuel, oil, and high-temperature applications
  • Available in standard and bespoke configurations

Our hoses are trusted by engineers and OEMs requiring reliable performance in the most demanding environments.

Request a quote
