Designed for use in applications where high purity of the fluid being transported, is important. Silcell is also suitable for use in potable water, food and pharmaceutical applications.

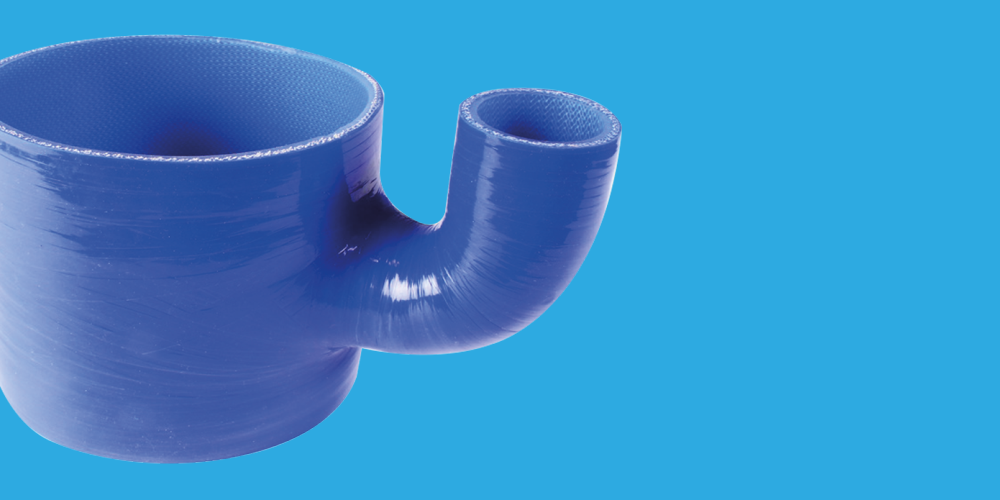

Silcell is a silicone, polyester reinforced hose, with a high-grade food/pharmaceutical quality liner. The liner material contains no pigment or other additives typically found in standard silicone compounds. This significantly reduces or eliminates the risk of contamination from siloxanes, oils and catalyst bi-products, which can be an issue with standard silicone hoses.

Not recommended for use with OAT coolants or,containing 2-EHA (2-Ethylhexanoic Acid) for example, Dexcool.

Technical details
3, 4 or 5 ply construction depending on inner
diameter.
2.0mm minimum liner – hose can be any
colour in the outer plies and cover.
Polyester fabric reinforcement.
Temperature range: -55°C up to +180°C
Working pressure: 4 bar minimum. *Varies
according to diameter, higher pressure is
possible with smaller diameters.
Finished hoses cannot be used for implants.

Inner liner conforms to:

• German KTZ drinking water regulation
Part 1.3.13
• Tested to USP class VI
• Food contact according to:
German BGVV XVA and LIIA
US-FDA-CFR21 – part 177.2600

Benefits of Fuel Cell Silicone Hose

  • High-grade pharmaceutical liner

  • Significantly reduces or eliminates the risk of contamination from siloxanes, oils and catalyst bi-products

  • Conforms to German KTZ drinking water regulation part 1.3.13

  • Hoses perform over a much wider temperature range (-55ºC to +200ºC)
